USB Laser G94 Scanner Specifications:        To Gomaro's Homepage

USB Laser scanner





Mechanical
Scanner only:
  • 14 cm L x 13 cm W x 7.7 cm H
  • 110 g
Cable (USB):
  • 250cm
    connected to USB port


(back to index)

Electrical
Operating Voltage:
  • 5 VDC ± 0.25 VDC
Operating Current (nominal):
Standby Current:
  • 100mA @ 5VDC
  • 10mA   @ 5VDC

(back to index)

Optical
Scan Rate:
  • 100 scans / second
Light Source:
  • laser visible (red) LED 670nm

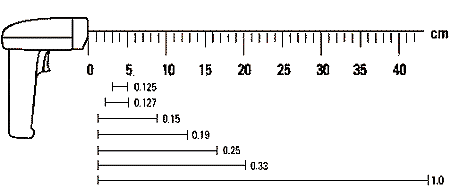

Resolution (maximum):
  • 0.125mm
laser usb

(back to index)

Symbologies Decoded
EAN/UPC/JAN:
  • UPC-A / UPC-E
    EAN-8 / EAN-13 Add-on
    ISBN , ISSN
    JAN-8 / JAN-13
Industrial Codes
  • Interleaved 2 of 5
    ITF
    Matrix 2of5
    Code 128 / EAN 128
    Code 39
    Code 93
    Codabar
    MSI / Plessey
    Code 11

(back to index)

Environmental
Recommended Operating And Storage Temperature:    0 to 40°C
Allowable Storage Temperature: -30 to 60°C
Humidity: 5% to 95%
non-condensing humidity.

(back to index)

Agency Approvals
  • FCC-A, EN 5502-B, EN50082-1

In our ongoing effort to deliver the best technology, specifications are subject to change without notice.
