CCD 75 USB Scanner Specifications:

Mechanical Electrical Optical Symbologies decoded Environmental Agency Approvals Download Programming Manual PS2 model specifications USB Laser specifications



Mechanical

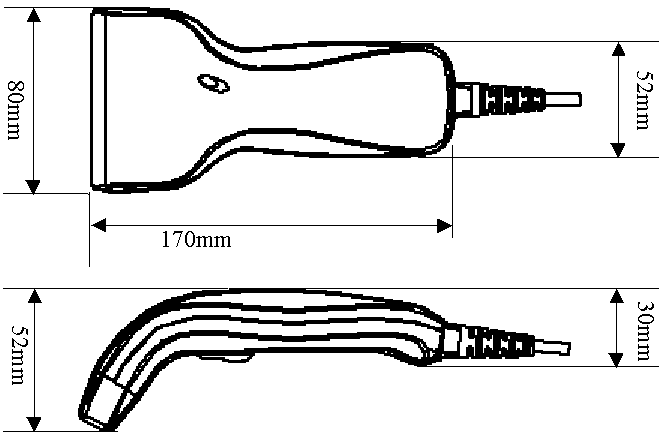

Scanner only:	17 cm L x 8 cm W x 5.2 cm H 120 g
Cable (USB):	180cm  connected to USB port

(back to index)

Electrical
Operating Voltage:	5 VDC ± 0.25 VDC
Operating Current (nominal): Standby Current:	84mA @ 5VDC 14mA @ 5VDC

(back to index)

Optical
Scan Rate:	55 ~100 scans / second
Light Source:	visible (red) LED 660nm
Resolution (maximum):	0.10mm

(back to index)

Symbologies Decoded
EAN/UPC/JAN:	UPC-A / UPC-E EAN-8 / EAN-13 ISBN JAN-8 / JAN-13
Industrial Codes:	Interleaved 2 of 5 ITF Matrix 2of5 Code 128 / EAN 128 Code 39 Code 93 Codabar Pharmacode (Laetus) MSI / Plessey Code 11 Telepen China Postal Code

(back to index)

Environmental
Recommended Operating And Storage Temperature:	0 to 50°C
Allowable Storage Temperature:	-10 to 60°C
Humidity:	5% to 95% non-condensing humidity.

(back to index)

Agency Approvals

FCC-A, EN 55022-B, AS/NZS 3548

In our ongoing effort to deliver the best technology, specifications are subject to change without notice.
